RunningRoo’s Toyota 3RZ-FE timing chain kit is an 11-piece set for selected 1998–2005 vehicles fitted with the 2.7-litre 16-valve DOHC petrol engine. The listing covers Hilux, HiAce, LandCruiser Prado, 4Runner and Tacoma applications, subject to VIN and engine confirmation.
The important detail is that this is not only a single timing chain. It also includes the balance-shaft chain, sprockets, two tensioners and five guides. For an older working ute, van or four-wheel drive, ordering the full listed system can reduce the chance of discovering an omitted wear component after dismantling.
View the verified product: RunningRoo 11-piece Toyota 3RZ-FE 2.7L timing chain kit. Confirm the VIN, engine code and original parts before checkout.
Listed application
The product page specifies:
- engine: 3RZ-FE, 2.7-litre petrol, 16-valve DOHC;
- model period: 1998–2005; and
- models: Toyota Hilux, HiAce, Tacoma, 4Runner and LandCruiser Prado.
Australian buyers will most commonly search for Hilux, HiAce and Prado. Tacoma and some 4Runner variants may be imports, making a VIN and physical engine check even more important. Registration lookup alone may not return complete information for an imported or engine-swapped vehicle.

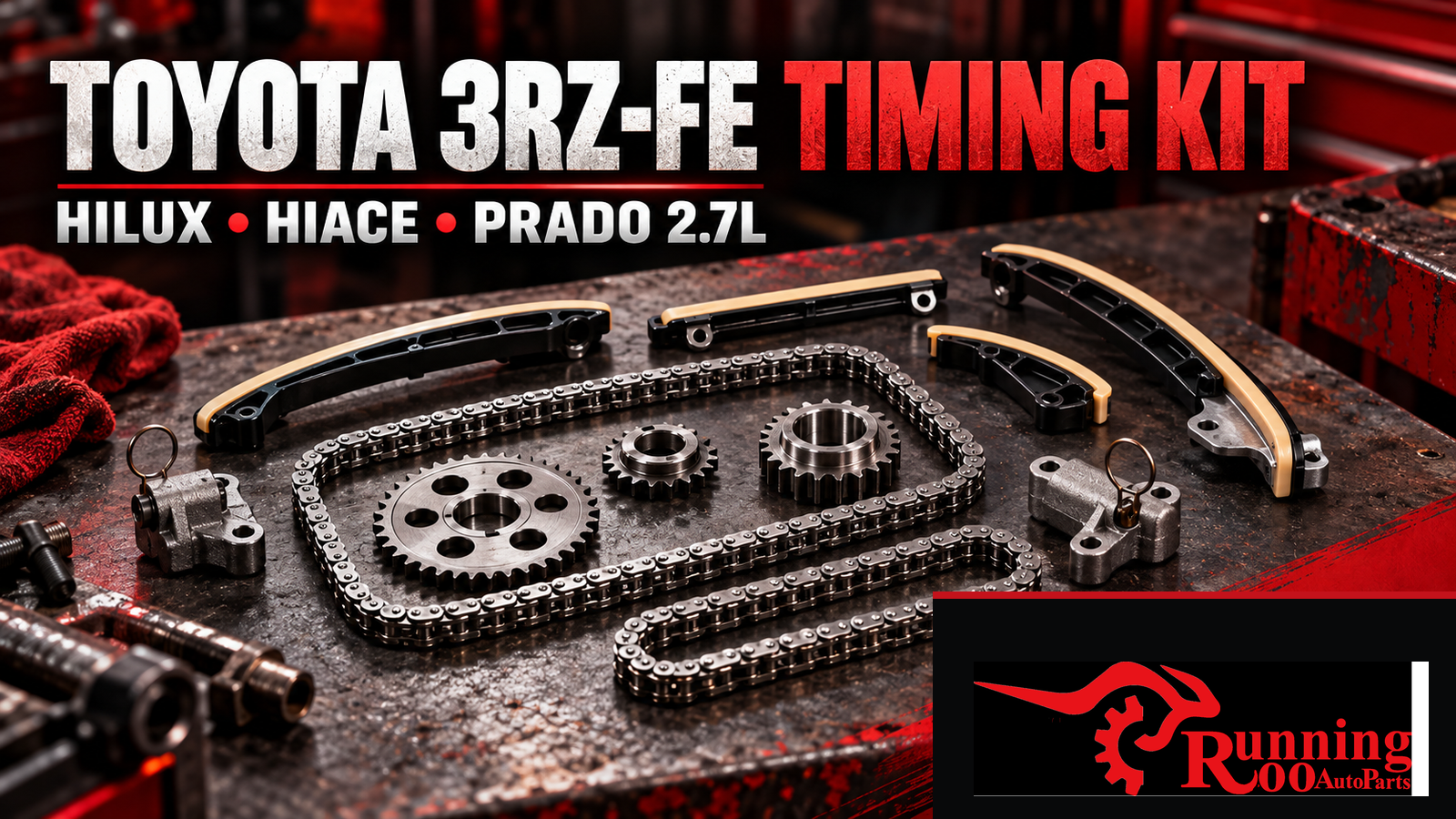

What is included in the 11-piece kit?
The current RunningRoo listing contains:
| Quantity | Component |
|---|---|
| 1 | Main timing chain |
| 1 | Balance-shaft chain |
| 1 | Small crank sprocket |
| 1 | Camshaft sprocket |
| 2 | Chain tensioners |
| 5 | Chain guides |
Together, those parts total 11 pieces. Check the product images before installation so each component can be matched to the original system.
The listing does not state that every gasket, seal, fastener, fluid or specialised tool is included. A workshop should prepare those items separately and confirm whether additional sprockets or ancillary components require replacement after inspection.
Why the balance-shaft chain matters
Some low-cost searches focus only on the main camshaft timing chain. The 3RZ-FE kit linked here also includes the balance-shaft chain and its associated tensioning/guiding hardware within the pictured set.
That matters because both systems are accessed as part of the wider timing-drive repair. Reusing visibly worn balance-shaft components beside a new main chain can undermine the value of the labour already invested. Conversely, a complete kit should not be fitted blindly if diagnosis shows the engine has a different fault. The best outcome comes from inspecting the whole drive and replacing the components supported by the evidence and service procedure.
Symptoms that should trigger diagnosis
Possible timing-drive concerns include abnormal chain-area noise, start-up rattle, persistent engine timing faults, rough running or visible guide wear. On a hard-working commercial vehicle, service history and oil condition are also important context.
Before ordering, ask the technician to:
- confirm the noise location and the conditions under which it occurs;
- scan the engine control system and preserve fault and freeze-frame data;
- check oil level, oil condition and the recorded service history;
- inspect accessible timing components and the oil filter for abnormal debris;
- verify mechanical timing under the correct workshop procedure; and
- assess whether another source—accessory drive, valve train, sensor or oil pressure—is producing a similar symptom.
This is especially valuable on a vehicle that has accumulated years of repairs. A previous engine replacement, mixed parts or an undocumented timing job can change what is actually fitted.
Pre-order checklist for a Hilux, HiAce or Prado
| Question | Best evidence |
|---|---|
| Is the engine definitely 3RZ-FE? | Engine code/number, vehicle data and a physical check |
| Is the vehicle within the listed 1998–2005 range? | Build plate and VIN, not registration year alone |
| Is the engine original to the vehicle? | Service records and engine-number comparison |
| Does the kit match the installed components? | Original-part photos and product-image comparison |
| Has the complete failure cause been identified? | Scan report, inspection and workshop diagnosis |
| Are ancillary items ready? | Written parts and consumables list from the installer |
Send RunningRoo the VIN, registration, engine details and original-part images if there is any uncertainty. Do this before the old kit is discarded.
Installation quality matters more than a shortcut
A timing-chain job affects valve timing and, in this application, the balance-shaft drive. The installer should use current manufacturer service information for the exact vehicle and engine, including alignment, tensioner preparation, tightening procedure and verification.
A professional workflow should include:
- cleaning and inspection of the timing area and oil passages;
- comparison of every new and removed component;
- correct placement of the five guides and two tensioners;
- verification of main-chain and balance-shaft timing;
- replacement of required seals, gaskets and one-time-use fasteners;
- manual engine rotation and timing recheck before start-up; and
- post-repair leak, noise and diagnostic checks.
Avoid generic timing diagrams or torque specifications from another Toyota engine. “Looks similar” is not a safe service method.
Buying for a working vehicle: reduce downtime
For many Australian 3RZ-FE vehicles, downtime is the biggest cost. A Hilux or HiAce may be a daily work vehicle, while a Prado may be needed for travel or towing. A locally stocked multi-piece kit can reduce the delay caused by ordering a missing guide or balance-shaft component after teardown.
RunningRoo is based in Melbourne, offers fast dispatch and provides free pickup by appointment. The product is sold under SKU HL-TY025-11, a useful reference when discussing the order with the supplier.
Check current stock and confirm your engine: HL-TY025-11 Toyota 3RZ-FE 11-piece timing chain kit.
Frequently asked questions
Does this kit fit a Toyota Hilux 2.7 petrol?
The listing covers selected 1998–2005 Hilux vehicles with the 3RZ-FE 2.7L petrol engine. Confirm the VIN, engine code and installed components.
Is the balance-shaft chain included?
Yes. The 11-piece package includes one main timing chain and one balance-shaft chain.
How many guides and tensioners are supplied?
The listing specifies five chain guides and two tensioners.
Does it fit a diesel Hilux or HiAce?
No. This product is listed for the 3RZ-FE 2.7L petrol engine, not a diesel engine.
Does it fit every 1998–2005 Prado?
No. Only the relevant 3RZ-FE 2.7L application should be considered, and VIN/engine confirmation is still required.
Should I buy the kit before diagnosis?
It is better to diagnose first. Timing-area noise can have more than one cause, and the workshop may identify additional parts or a different fault.
Source and fitment basis
*Fitment information is a guide. Always verify the VIN, engine code, original components and current manufacturer service information before installation.*
Professional verification before the vehicle is opened
A parts page is most useful when it helps the customer and workshop make the same decision from the same evidence. For a Toyota 3RZ-FE timing chain kit enquiry, begin with VIN, 3RZ-FE confirmation, build data and original component evidence. Put those details in the first message rather than supplying a vehicle model alone. This gives the seller a real basis to compare the order with the current product description, and gives the installer a record it can use before work begins.
The evidence must be read as a group. A VIN may identify original build data, but it does not prove that an older vehicle has never had an engine, transmission or timing-system repair. An original number is valuable, but can be superseded. A scan result may direct the technician towards a system, but it is not a part-number instruction. The safe purchase decision is the one where the vehicle record, physical component information, workshop scope and live listing agree. If one of those sources conflicts, pause the order and resolve the difference first.
A workshop-to-seller handover that prevents delays
Ask the workshop for a short, factual note. It does not need to contain its entire repair procedure. It should identify the vehicle, the exact system or component requested, the key number or position, and whether the repair scope is confirmed. Pair that note with clear, correctly oriented photographs of labels or removed parts where available. Avoid relying on a screenshot of a similar listing or a photo from a forum. A useful handover is evidence from the actual vehicle.
| Checkpoint | Evidence | What it prevents |
|---|---|---|
| Vehicle identity | Full VIN and build information | Ordering by badge or registration year alone |
| System identity | Engine or gearbox code and repair scope | Mixing related but different applications |
| Part identity | Complete original number, suffix and photos | Near-match or revision errors |
| Listing identity | Current product title, contents and conditions | Ordering from outdated saved information |
| Installation plan | Qualified workshop confirmation | A parcel arriving without a practical fitting plan |
This table is deliberately conservative. It does not make diagnosis slower; it moves the important questions to before payment and before the vehicle is dismantled. For regional and interstate customers, it is also an effective way to avoid a vehicle sitting at a workshop while an overlooked seal, consumable, code or fitment question is resolved.
Technical statements and official information
This article is a buying and planning guide, not a substitute for a repair manual. The technical principles discussed here—vehicle-specific identification, structured diagnosis, controlled installation and post-repair verification—must be applied using the current procedure for the exact vehicle. Toyota provides official technical-information access at Toyota technical information. The workshop performing the work must consult the applicable official information for torque values, safety steps, programming, fluid specification, timing alignment, component testing and any one-time-use hardware.
That boundary matters. An online retailer cannot see oil pressure, wiring integrity, mechanical timing, clutch condition, cooling-system performance or software state from a message. A qualified workshop can test the vehicle and select the correct procedure. RunningRoo can then help assess whether the identified component and the current listing are aligned. Keeping those roles separate improves repair quality and prevents an online purchase being treated as a remote diagnosis.
Before ordering: make the job scope visible
A common cause of repeat labour is treating the named product as every part required for a job. A timing kit, control unit, clutch pack or electric pump may be central to the repair, but a workshop can also require gaskets, fasteners, fluids, seals, filters, adaptation work or related inspection. The product contents should be compared with the work order, not assumed to be a complete workshop package. Ask the installer what it expects to supply, what it expects the customer to supply and what it will only decide after inspection.
Be equally precise about the repair boundary. An item can be compatible with the vehicle and still not be the correct answer to its present fault. A component may be required only after a pressure test, scan-data comparison, electrical test, mechanical inspection or disassembly finding. The correct question is therefore not “will this fix it?” but “has the workshop identified this exact item as part of the repair scope, and does the current listing match that identity?”
Receiving, inspection and evidence retention
When delivery arrives, photograph the shipping label and outer package before opening it. Compare the invoice, product title, included components and visible markings with the evidence sent to the seller and with the workshop’s note. Keep all packaging, product labels and the order record together until the intended installer has inspected the item.
If anything is inconsistent, do not force a comparison by opening, programming, connecting, modifying or trial-fitting the item. Preserve its condition, record the difference and contact the seller with the order number, VIN, original information and clear photographs. A concise statement such as “the original number has a different suffix; no installation attempted” is more useful than a general claim that the part looks different. It allows a question to be resolved before the evidence is compromised.
After the repair, retain the seller invoice with the workshop invoice, vehicle kilometres and a short description of the completed work. This record assists later servicing and a future owner. It does not guarantee a future repair outcome, but it gives the next technician facts rather than an incomplete description such as “a timing part” or “a DSG part” was replaced.
Fitment decision chart
| If this is known | Appropriate next step |
|---|---|
| VIN, system identity, original number and listing align | Confirm stock, delivery and workshop schedule |
| Vehicle identity is known but the repair scope is unclear | Complete diagnosis before purchasing |
| An original number or suffix differs | Request a fitment review with photos |
| The workshop has identified extra seals, fluid or hardware | Add those items to the job plan before booking |
| Delivery has arrived but evidence does not align | Stop before installation and retain packaging |
| The installer cannot perform required commissioning or verification | Arrange a suitably equipped workshop first |
Frequently asked questions
Can I order from the vehicle model name alone?
No. Use the VIN plus the exact engine or gearbox information, and compare the current listing with the component requested by the workshop.
Does a warning light or stored fault code prove this part is needed?
No. A code is evidence for diagnosis, not a replacement instruction. The workshop must confirm the cause and repair scope using the official procedure for the vehicle.
Why does the complete OE number matter?
A number can contain revisions or suffixes that matter to identification. Copy every visible character and provide a clear photograph where possible.
Does the product listing include every item needed for installation?
Do not assume so. Check the current listed contents and ask the installer about seals, fluids, fasteners, consumables, programming or related work.
What should I do if the delivered component looks different?
Stop before fitting, modifying, connecting or programming it. Retain packaging and contact the seller with the order details and evidence from the vehicle.
Can this article replace official workshop information?
No. The article supports a safer purchase decision. Official service information and a qualified technician are required for diagnosis, safety procedures, installation and final verification.
Official source and editorial note
The official technical-information portal for the vehicle family is Toyota technical information. It is cited for the requirement to use current, vehicle-specific repair procedures. RunningRoo is an independent parts seller and is not affiliated with or endorsed by Toyota. Product availability, applications and contents can change, so re-check the live product page and provide the fitment evidence before ordering.
