By RunningRoo Auto Parts — written from the desk of our Product Manager
The Hyundai and Kia 2.0-litre and 2.4-litre Theta engine family powers a huge share of the Sonata, Santa Fe, Tucson, Optima, Sportage and i45 range on Australian roads. It is a capable and popular engine, but its timing chain, tensioner and CVVT gears are a known wear point on higher-mileage cars, producing the classic cold-start rattle. This guide covers the symptoms, the fitment details and the replacement, so you can plan the repair correctly.
RunningRoo Auto Parts – Based in Melbourne, Australia 🇦🇺
📞 Free 24/7 Pickup Available (Contact 0425890125)
💬 Any questions? Message or Call us anytime! We’re here to help.Why Choose RunningRoo?
✅ Aussie Owned & Operated | 🚚 Fast Shipping | 🤝 Friendly Support
The Theta timing system
The Theta II family uses a timing chain with CVVT on the camshafts, and the chain is tensioned by a hydraulic tensioner that relies on oil pressure. The chain, tensioner and plastic guides wear with age, and on higher-mileage engines the CVVT gears can develop the same lock-pin wear that causes a rattle on start-up.
Because the Theta engines are interference designs, a stretched chain or failed tensioner that allows the timing to jump can cause severe valve damage, so a cold-start rattle should never be ignored.
The symptoms of a worn Theta chain
The classic symptom is a rattle from the top of the engine on a cold start that lasts a second or two as the tensioner takes up slack. A worn chain or CVVT gear can also cause rough running, reduced power, poor fuel economy and fault codes for camshaft timing. The table below summarises the causes.
| Symptom | Likely cause | Check |
|---|---|---|
| Cold-start rattle | Tensioner or chain | Isolate the noise |
| Rough idle + timing codes | Chain or CVVT gear | Measure correlation |
| Power loss, poor economy | CVVT gear or chain | Scan codes |
| Rattle that persists | Guides or chain | Inspect the timing system |
Fitment and the right kit

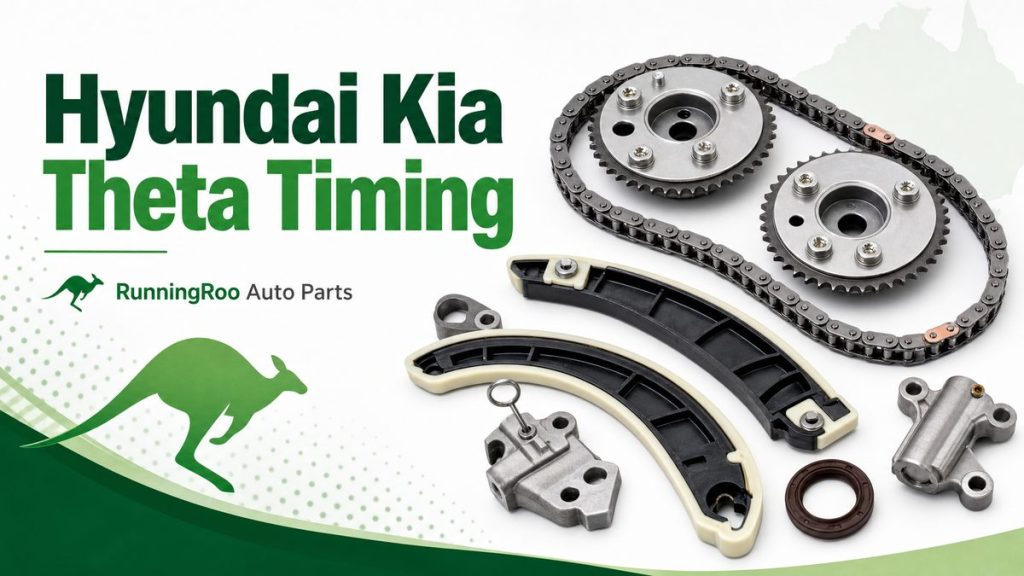

The 2.0-litre and 2.4-litre Theta engines share the same family but use different kits, so confirm fitment by the engine code and the vehicle before ordering. A complete kit should include the chain, the updated tensioner, the guide rails and the sprockets, and on a high-mileage engine the CVVT gears are often renewed at the same time.
Sending the VIN and engine code to the supplier confirms the correct kit, because the same model can span different Theta variants across years.
The replacement in practice
The job starts with locking the crankshaft and camshafts, then removing the front cover to reach the chain. The old chain, tensioner and guides are removed, the new components fitted, and the engine turned by hand to confirm the timing before the covers go back on with fresh seals and sealant.
This is an advanced, timing-critical job, so most owners buy a quality kit and have a Hyundai or Kia specialist workshop fit it.
Which models use the Theta engine
The 2.0-litre and 2.4-litre Theta engine family powered a long list of Hyundai and Kia models, including the Sonata, Santa Fe, Tucson, Optima, Sportage, i45 and the Kia Sorento, among others. In Australia it is most familiar from the i45, Santa Fe and Sportage, where it earned a reputation as a willing and efficient engine.
Because the family spans many models and years, the timing chain kit can vary between applications, which is why fitment is confirmed by engine code and VIN rather than by the model alone. The same Theta engine can use different kit revisions across its production life.
The CVVT gear connection
The Theta II engines use CVVT on the camshafts, and the CVVT gears are a common source of the cold-start rattle as their locking pins wear. Because the CVVT gears are driven by the timing chain, they are inspected and often renewed as part of the timing chain service on a high-mileage engine.
Renewing the chain, tensioner, guides and CVVT gears together is the complete fix, and it avoids the frustration of replacing the chain only to have a CVVT rattle return shortly after.
Preventive maintenance for the Theta
The Theta’s best protection is regular oil changes with the correct specification oil, because the tensioner and CVVT gears are oil-actuated and wear faster with dirty or low oil. Addressing any cold-start rattle early is equally important, because the Theta is an interference engine and a jumped chain can cause severe damage.
For a high-mileage Hyundai or Kia that is used hard, budgeting for the timing chain and CVVT gears at the first sign of a rattle is the cheapest way to keep the engine healthy.
Theta generations and engine codes
The Theta family is not a single engine, which is why matching by engine code matters more than matching by model name. The commonly seen codes include the G4KD, G4KE and G4KJ variants of the 2.0 and 2.4-litre petrol engines, and the timing kit can vary across those codes and across production years.
| Engine code | Typical capacity | Australian examples |
|---|---|---|
| G4KD | 2.0-litre Theta II | i45, Sonata, Optima, Sportage |
| G4KE | 2.4-litre Theta II | i45, Sonata, Santa Fe, Sportage |
| G4KJ | 2.4-litre Theta II | i45, Kia Sportage and Sorento variants |
The engine code is the reference point for the correct chain, tensioner, guides and sprockets. If a kit is advertised by model alone, confirm the engine code before paying for it.
How the CVVT rattle is diagnosed
The Theta cold-start rattle is often two different noises hiding behind the same description. A brief rattle that stops as oil pressure builds usually points to the tensioner or a worn CVVT gear lock pin, while a rattle that persists at idle and changes with engine speed can point to worn guides or a stretched chain.
A workshop diagnosis should start with a scan for camshaft timing codes, then use a cold-start audio check and, where possible, a timing-correlation measurement. The definitive inspection happens once the front cover is off and the chain, guides and CVVT gears are visible. That is also the moment the exact parts to replace become clear.
What to replace while the cover is off
Once the Theta timing cover is off, the marginal cost of renewing the chain, tensioner, guides, sprockets and CVVT gears is small compared with the cost of opening the engine again. On a high-mileage engine, replacing the complete system is the best value, and it is also the best insurance against a repeat rattle.
Fresh engine oil and a new front-cover seal should also be part of the job. The tensioner and CVVT gears are oil-actuated, so clean oil of the correct specification helps the new parts bed in and protects them from the contamination that often accelerated the original wear.
Key takeaways
The Hyundai and Kia 2.0 and 2.4 Theta engines are capable and popular, but their timing chain, tensioner, guides and CVVT gears wear on higher-mileage cars, producing the classic cold-start rattle. Matching the kit by engine code and VIN, renewing the CVVT gears with the chain, and using the correct locking tools are the keys to a reliable repair.
For a high-mileage Hyundai or Kia, addressing a rattle early and doing the timing system completely is the cheapest way to keep the engine healthy for many more kilometres.
Quick reference: the Theta timing service
Use this checklist when planning a Theta timing chain service:
- Confirm the cold-start rattle and read any timing codes.
- Record the engine code and VIN to confirm the correct kit.
- Renew the chain, tensioner, guides and sprockets as a complete kit.
- Renew the CVVT gears on a high-mileage engine.
- Use the correct locking tools and torque sequence.
- Turn the engine over by hand before the first start.
A complete, correctly fitted service is far cheaper than the valve damage a jumped chain can cause.
Frequently asked questions
Does the Theta engine use a belt or chain?
It uses a timing chain, with CVVT on the camshafts.
What causes the Theta cold-start rattle?
Usually a worn tensioner allowing slack, or CVVT gear lock-pin wear, producing a brief rattle until oil pressure builds.
Is the Theta chain a common failure?
The chain, tensioner, guides and CVVT gears are a known wear point on higher-mileage Theta engines.
Should I replace the CVVT gears with the chain?
On a high-mileage engine it is often wise to renew them together, since the labour is already spent.
Is the Theta an interference engine?
Yes, so a jumped chain can cause severe valve damage.
Which Australian Hyundais and Kias use the Theta?
Mainly the i45, Sonata, Santa Fe, Tucson, Sportage, Optima and Sorento across the 2.0 and 2.4-litre versions.
How can I make my Theta chain last longer?
Use the correct oil and change it on schedule, and address any cold-start rattle early.
What is the difference between the G4KD, G4KE and G4KJ kits?
They are different Theta variants, so the chain, tensioner and sprockets can vary. Match the kit by engine code and VIN rather than by model alone.
Is the Theta cold-start rattle always the timing chain?
No. It can also be the tensioner, a worn CVVT gear lock pin or worn guides, so the diagnosis should pinpoint the cause before parts are ordered.
How long should a Theta timing chain kit last?
With the correct oil, on-schedule changes and a quality kit, a correctly fitted timing system should last well beyond 100,000 km, but hard use and neglected oil shorten its life.
Do I need special tools to fit a Theta timing kit?
Yes. Correct crankshaft and camshaft locking tools are required because the Theta is an interference engine and the timing must be set precisely.
What should I do if I hear the rattle for the first time?
Book a diagnosis promptly rather than waiting. Early attention to the tensioner, chain or CVVT gear is far cheaper than a jumped chain on an interference engine.
Is the Theta timing service a DIY job?
It is advanced and needs the correct locking tools, so most owners buy the kit and have a Hyundai or Kia specialist fit it.
