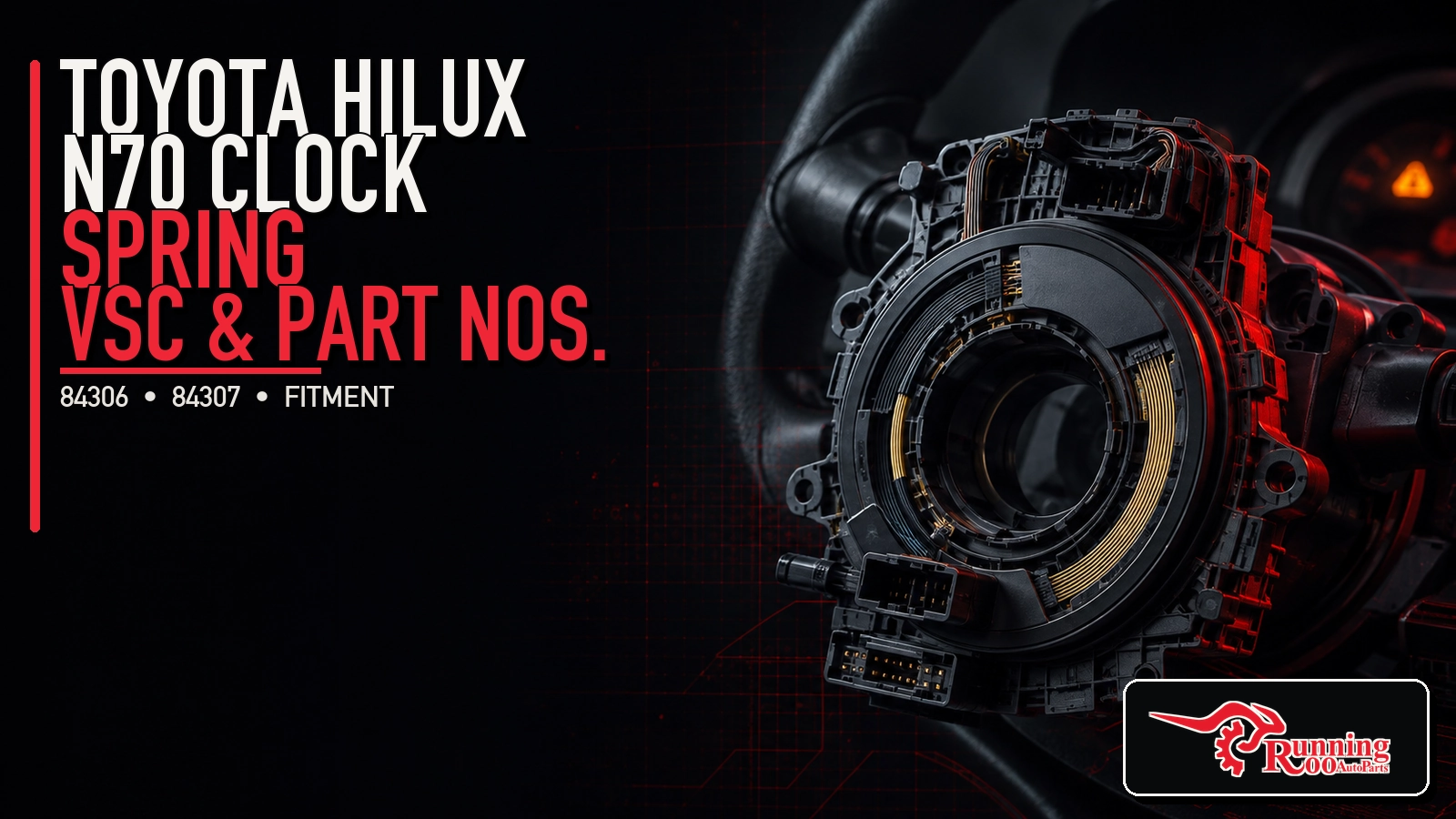

Toyota Hilux N70 Clock Spring: VSC & Part Number Guide

Toyota Hilux N70 clock-spring listings commonly show 84306-0K020, 84306-0K051 and 84307-0K020. The numbers are close enough to invite an assumption that they are revisions of one interchangeable part, but features such as VSC, steering-wheel controls and connector layout can change the required assembly.

A failed spiral cable can interrupt the driver-airbag, horn or wheel-switch circuits. A steering-angle or stability warning may involve related hardware, calibration or a separate fault. This guide helps distinguish the symptoms, compare the catalogue references and install the correct unit without over-rotating its internal ribbon cable.

Why VSC changes the fitment conversation

The clock spring provides flexible electrical paths through the rotating steering wheel. The steering-angle sensor tells the stability-control system where the driver intends to steer. They can sit together in the column assembly, but they perform different jobs and may be serviced differently depending on specification.

When a product description includes VSC, treat that as a functional fitment detail—not just a keyword. The replacement must match the circuits and sensor arrangement on the vehicle. Installing the wrong unit can leave warning lamps, inoperative controls or an impossible calibration even if the mounting points line up.

Symptoms that deserve proper diagnosis

• Airbag warning with a driver-airbag circuit code
• Horn or steering-wheel controls cutting in and out
• VSC, traction or steering-angle warning after steering work
• Noise from the spiral-cable area while turning
• Failure that appears only near one steering position
• A replacement failing after full-lock operation

Fitment and fault comparison

Reference	Catalogue clue	Before ordering
84306-0K020	Selected Hilux SR/SR5 N70 listings	Compare original label and connector count
84306-0K051	Selected 2005–2015 Hilux listings	Confirm whether it supersedes the number on this exact vehicle
84307-0K020	Selected VSC-equipped Hilux listings	Verify VSC and steering-angle arrangement
84306-12070	Older multi-model Toyota listing	Do not select simply because Hilux appears in the description

Use these patterns as evidence, not as a substitute for vehicle-specific service information. More than one fault can exist, especially after previous steering, electrical or cooling-system work.

A step-by-step diagnostic sequence

1. Separate the warning systems

Scan the SRS and stability-control modules. Record whether the fault concerns the driver-airbag circuit, steering angle, yaw/acceleration data or another wheel/sensor input. Similar dashboard lights do not mean the same failed part.

2. Check steering-wheel functions

Test the horn and every fitted switch at centre and through small steering movements. Several functions changing together supports a common rotating connection; one failed button may be a switch or local harness.

3. Confirm vehicle specification

Use the VIN, model code, build date and trim. Confirm whether VSC is fitted and whether the steering-angle sensor is integrated with, clipped to or separate from the clock spring on this vehicle.

4. Identify the original number

Photograph the label before disposal. Compare 84306-0K020, 84306-0K051 or 84307-0K020 together with plug shapes, pin counts, locating lugs and centre-lock design.

5. Check for an off-centre steering system

Before removal, confirm the front wheels and steering wheel agree at straight ahead. If a wheel alignment, rack or column repair preceded the fault, make sure the rack itself is centred rather than correcting a crooked wheel at the splines.

6. Follow calibration instructions

After replacement, a VSC-equipped vehicle may require zero-point or steering-angle calibration using the specified conditions and scan equipment. Investigate any code that returns instead of repeating a calibration blindly.

Four RunningRoo product options to compare

These links are relevant catalogue options, not automatic fitment approval. Confirm the VIN, build date, original part number, connector or hose layout and required functions with RunningRoo or a qualified workshop before ordering.

1. Hilux clock spring 84306-0K020 — For selected N70 SR/SR5 applications after original-number confirmation.

2. Hilux clock spring 84306-0K051 — A separate reference path; confirm any supersession against VIN data.

3. Hilux VSC clock spring 84307-0K020 — A VSC-focused listing where sensor arrangement is a primary fitment check.

4. Toyota spiral cable 84306-12070 — An older multi-model comparison listing; match the actual vehicle and original number.

Centring, SRS safety and VSC calibration

Disconnect and handle the SRS only according to current Toyota service information. Keep the road wheels straight and the steering shaft fixed. Retain any transport lock until the replacement is seated, and never spin the inner hub to see how far it turns unless the supplied centring instructions require that method.

Verify horn, wheel switches and free steering movement before the road test. Then scan SRS, ABS and VSC systems and perform the correct zero-point or steering-angle procedure when applicable. Confirm that warnings remain off through an ignition restart and a controlled drive.

• Confirm N70 model code, VIN, build date and trim
• Identify whether VSC and a steering-angle sensor are fitted
• Match the complete 84306/84307 number
• Compare connectors and locating lugs
• Centre the rack, steering wheel and clock spring
• Complete the specified calibration and final scan

More RunningRoo workshop videos

Watch more technical and workshop content from the official RunningRoo Auto Parts YouTube channel:

• Timing Chain Installation | RunningRoo Full Range in Melbourne
• Why You Should Replace Your Timing Chain Before It Fails

Frequently asked questions

What is the difference between 84306-0K020 and 84306-0K051?

They appear in selected Hilux listings but should not be treated as universally interchangeable. Confirm the original number, any verified supersession and the connector arrangement.

Does a VSC Hilux need 84307-0K020?

Some VSC-equipped listings use that reference, but VIN, original label and attached sensor configuration remain the deciding evidence.

Can a clock spring cause the VSC light?

A disturbed or miscalibrated steering-angle system can illuminate VSC warnings. A scan is needed because wheel-speed, yaw and other faults can do the same.

Can I reuse a clock spring after the steering wheel spun while disconnected?

It may no longer be centred. Follow the service procedure to establish its position and inspect for over-rotation damage before reuse.

Final recommendation

For an N70 Hilux, the decisive details are VSC equipment, original part number and connector layout. Diagnose the warning system, distinguish 84306 from 84307 applications, and complete centring and calibration as carefully as the mechanical installation.

This article provides general technical information. Confirm fitment and procedures against current manufacturer service data. Airbag, braking, steering and cooling-system work should be completed by a suitably qualified technician.
