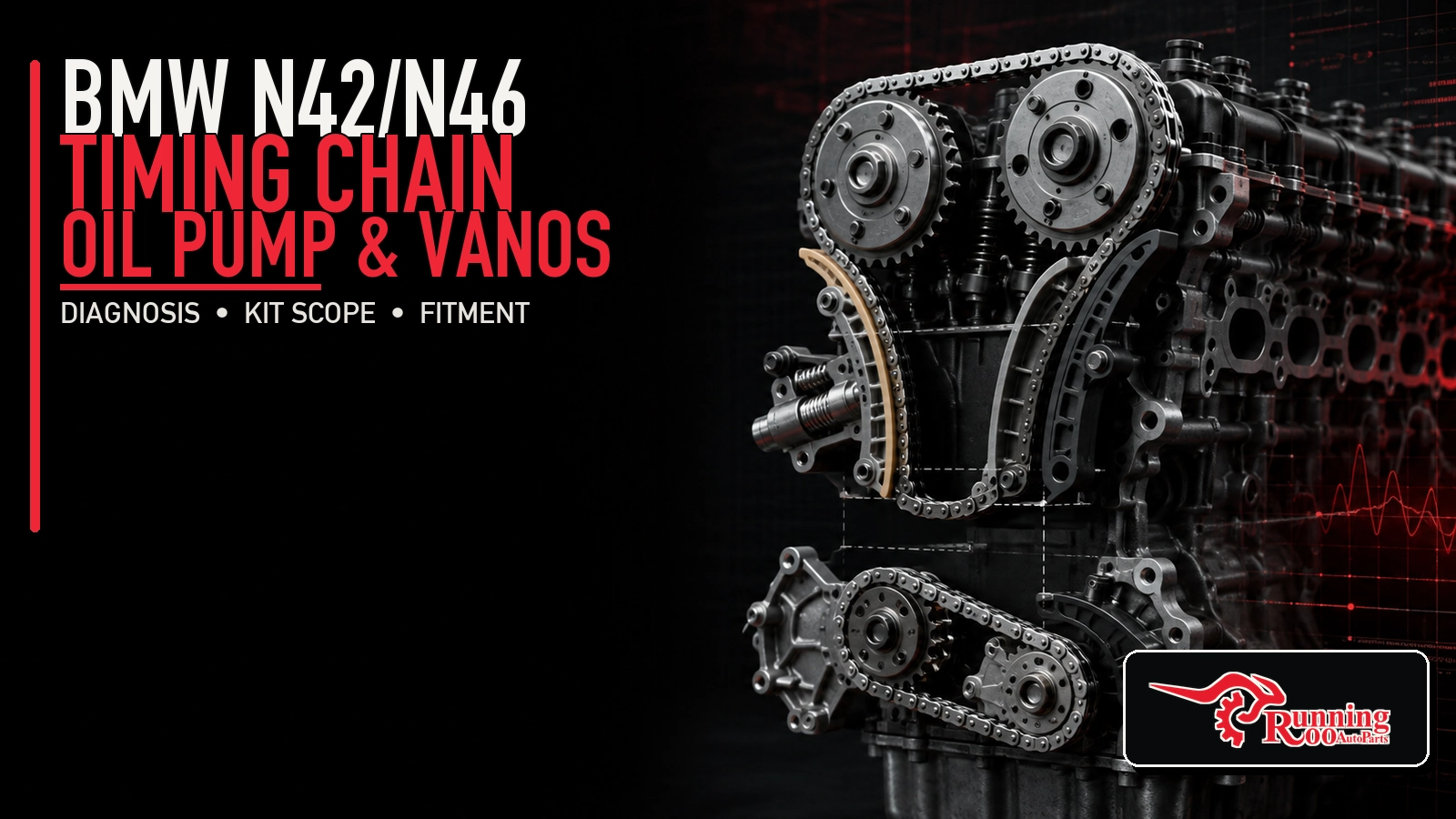

BMW N42/N46 Timing Chain vs Oil-Pump Chain: Kit and VANOS Guide

A metallic rattle from a BMW 118i, 120i, 318i, 320i or another N42/N46 application can start a timing-chain search, but the word ‘chain’ does not identify the repair. The camshaft timing drive, the oil-pump drive, the hydraulic tensioner, the guides and the VANOS camshaft adjusters are separate parts of the system. Wear, oil-pressure problems and an unrelated accessory can also create similar noise.

The useful buying question is therefore not ‘Which kit is cheapest?’ It is ‘Which components have been tested and which exact engine is fitted?’ This guide explains how to separate main-chain, oil-pump-chain and VANOS clues, how to compare four RunningRoo catalogue options, and why the VIN, engine code and original component numbers must lead the order.

Three systems that buyers often combine by mistake

The main timing chain synchronises the crankshaft and camshafts through guides and a hydraulically assisted tensioner. The oil-pump drive is a separate chain circuit lower in the engine. The VANOS adjusters change camshaft phase under ECU and oil-pressure control. A complete diagnosis can implicate one circuit, several circuits or none of them, so a large box of parts is not a substitute for evidence.

Oil quality and supply connect the systems. A restricted oil feed, low pressure, an unsuitable filter or long service intervals can affect tensioner fill and camshaft-control response. That is why a professional inspection should include oil condition, stored faults, live camshaft data and physical guide debris—not only a cold-start sound recorded on a phone.

Symptoms that deserve a proper timing-system check

• Rattle at cold start that persists longer than a brief normal oil-fill sound
• Plastic guide debris found in the oil-filter housing or sump inspection
• Camshaft correlation, timing-over-advanced or timing-retarded fault codes
• Unstable idle, reduced performance or difficult starting
• VANOS target and actual angles that fail to agree under controlled testing
• Lower-engine chain noise that does not localise to the camshaft drive
• Noise returning after a tensioner-only repair

Choose the repair scope from evidence

Possible scope	Evidence that supports it	Do not assume
Main timing-chain kit	Guide wear, chain elongation or verified timing error	Every rattle means the chain has stretched
Oil-pump-drive chain	Lower-circuit wear or looseness confirmed during inspection	It is included in every main-chain kit
VANOS camshaft adjusters	Mechanical backlash or control fault remains after oil/solenoid tests	A correlation code proves both gears are faulty
Combined repair	Multiple components fail inspection and labour overlap is justified	The largest kit is always the correct kit

The patterns above are diagnostic clues, not automatic replacement decisions. More than one fault can exist, especially on an engine with high kilometres, uncertain service history or previous internal work.

A step-by-step diagnostic sequence

1. Confirm N42 or N46 before searching by model

Record the VIN, build date, displacement, engine code and any original numbers that can be read. BMW model badges span several engines and markets, while registration year can differ from production date. A 318i description alone is not enough to order a timing kit or camshaft adjuster.

2. Document the noise under repeatable conditions

Note oil temperature, time since shutdown, engine speed and duration. Compare the front upper timing area with the lower crankcase and accessory drive using safe workshop methods. Do not repeatedly cold-start an engine with suspected loss of timing simply to make a louder recording.

3. Scan before clearing anything

Save DME codes and freeze-frame data, then compare commanded and actual camshaft positions where the scan tool and service procedure support it. Correlation or VANOS codes narrow the investigation, but electrical faults, dirty control solenoids and oil-pressure problems must still be excluded.

4. Inspect oil condition and guide evidence

Check the correct oil level and service history. Inspect the filter and accessible areas for hard plastic fragments or metallic debris. Debris changes the risk assessment because it can travel through the lubrication system; its source and downstream effects should be evaluated before new timing parts are installed.

5. Verify timing and component wear

Use the specified locking tools and current BMW procedure to check base mechanical timing. Inspect guide faces, tensioner travel, sprocket condition, oil feeds and adjuster backlash as permitted by service data. Turning the engine against valve spring load is not an accurate chain-stretch measurement.

6. Build the parts list from failed inspections

Choose the basic chain kit, oil-pump-drive kit, camshaft-adjuster package or a combined set only after scope is defined. Compare every guide, sprocket, chain, seal and fastener in the listing against the original arrangement and the workshop’s planned replacement list.

Four RunningRoo product options to compare

These are relevant catalogue links, not automatic fitment approval. Confirm the VIN, production date, engine code, original part numbers and exact kit contents with RunningRoo or a qualified workshop before ordering.

1. BMW N42/N46 main timing-chain kit — A main-drive option for selected applications; confirm exact engine and included guide/tensioner pieces.

2. BMW N42/N46 oil-pump-drive chain kit — A separate lower-drive set, not a substitute for the main camshaft timing kit.

3. Timing kit with two VVT camshaft adjusters — For a repair where the relevant adjusters have also failed inspection.

4. Timing, two VVT gears and oil-pump-chain package — A broader package whose complete contents still need to match the engine and job scope.

Repair planning: oil system, tools and verification

Internal engine timing work requires the correct crankshaft and camshaft locking tools, torque-angle procedures and replacement of any specified single-use fasteners. Cleanliness matters around oil galleries and VANOS components. If guide debris is present, the workshop should decide how the sump, oil pickup and lubrication circuit will be inspected rather than sealing fragments inside the engine.

Before first start, rotate the engine by hand exactly as the service procedure directs and recheck the timing references. Prime or fill components where specified, use the correct oil and filter, then monitor oil pressure, abnormal noise and camshaft data. A cleared code and a quiet five-second idle are not enough; the final check should include leak inspection and a controlled drive cycle.

• VIN, build date and exact N42/N46 variant confirmed
• Fault codes and live camshaft data saved
• Noise location and oil-pressure condition evaluated
• Main chain and oil-pump chain treated as separate scopes
• VANOS adjusters replaced only when evidence supports it
• Locking, torque, debris-control and post-repair checks planned

More RunningRoo workshop videos

Continue with these related videos from the official RunningRoo Auto Parts YouTube channel:

• BMW Owners Beware: Timing Chain Guide Failure Around 150,000 km
• How to Check a VVT Sprocket | Camshaft & Timing Gear Inspection Guide

Frequently asked questions

Is the N42 timing-chain kit the same as the N46 kit?

Some catalogue options cover selected N42 and N46 applications, but that does not make every engine version identical. Confirm the VIN, engine code, production date, original numbers and physical layout before ordering.

Should the oil-pump chain be replaced with the timing chain?

Not automatically. Inspect the lower drive and consider access, wear evidence and service information. A separate oil-pump kit may be justified, but it should be an intentional repair scope.

Does a VANOS fault code mean the camshaft gear is bad?

No. Oil supply, a control solenoid, wiring, mechanical timing and the adjuster itself can all affect camshaft response. Test the system before adding adjusters to the parts order.

Can I fix a cold-start rattle with only a new tensioner?

A tensioner-only repair is appropriate only when diagnosis supports it and guides, chain, sprockets and timing are within specification. It can temporarily mask a wider worn-chain system.

Final recommendation

For an N42/N46 repair, identify the circuit before choosing the kit. Prove the timing condition, inspect the oil and guide evidence, separate the main chain from the oil-pump drive, and test VANOS control before ordering. The right result is a verified scope and exact fitment—not the largest collection of parts.

This article provides general technical information. Confirm fitment and repair procedures against current manufacturer service data, and use a suitably qualified technician for internal engine-timing work.
