G’day everyone. I’m the Senior Product Manager here at RunningRoo Auto Parts, Australia’s trusted aftermarket automotive parts specialist. If you own a Mercedes-Benz with the M276 V6 engine, you may have heard a brief rattle on cold start or been quoted for camshaft adjusters and a timing chain. In this guide I’ll explain how the M276 timing system works, why the camshaft adjusters wear, the symptoms to listen for, and what the repair costs in Australia.

The M276 replaced the earlier M272 V6 and is used in a wide range of Mercedes-Benz models in Australia, so these timing system questions come up frequently. The good news is that the failure mode is well understood, and with the right diagnosis and a complete kit, the repair can be done properly and cost-effectively.

All prices below are in Australian dollars and are indicative only. If you would rather confirm the right kit for your engine and model before reading further, our Melbourne team can help over the phone.

How the M276 timing system works

The M276 is a variable-valve-timing V6 engine that uses a timing chain to drive the camshafts from the crankshaft, with camshaft adjusters mounted on the ends of the camshafts to vary valve timing. The chain runs around the crankshaft sprocket, the camshaft sprockets and the adjusters, with guides and tensioners keeping it tight.

Because the engine has two cylinder banks and multiple camshafts, there are more timing components than on a simple four-cylinder. This is one reason the parts list and labour for an M276 timing job are higher than for many other engines.

The camshaft adjusters are hydraulically operated and rely on clean, correct-specification oil. When they wear, the internal locking mechanism can rattle, and the engine can log camshaft position fault codes.

On a cold start the adjusters are briefly unlocked until oil pressure reaches them, which is exactly when a worn unit makes itself heard. As the engine warms and pressure stabilises, the noise fades, which is why the problem is so easy to overlook in day-to-day driving.

Common M276 timing symptoms

The classic symptom is a brief metallic rattle or chatter on cold start, which lasts a second or two until oil pressure builds and locks the adjusters. This is often dismissed as a normal noise, but it is the earliest warning that the adjusters are wearing.

Other symptoms include a check engine light with camshaft position or correlation codes, a rough or uneven idle, a loss of power, and in more advanced cases a persistent rattle even when the engine is warm. The table below summarises what each symptom points to.

Symptom	What it usually means	Urgency
Cold-start rattle (1–2 sec)	Worn camshaft adjuster	High — inspect soon
Check engine light	Camshaft position / correlation code	High — scan immediately
Rough idle / power loss	Timing or adjuster fault	High
Persistent warm rattle	Advanced wear	Critical — do not ignore

Why the M276 camshaft adjusters wear

The camshaft adjusters contain a small locking pin and internal vanes that are under constant hydraulic and mechanical load. Over time the locking mechanism wears, and on a cold start the adjuster rattles until oil pressure reaches it and holds it in position.

Long oil-change intervals and the wrong oil specification are major contributors, because the adjusters depend on clean oil of the correct viscosity to operate quietly and precisely. High-kilometre engines and engines that do a lot of short trips are the most likely to show the problem.

Because the adjusters and the timing chain live in the same area and age together, most specialists recommend addressing them as a complete job rather than replacing a single adjuster in isolation.

The chain itself can also stretch with age, and the plastic guides can become brittle and crack. When any of these components fail, the risk is not just noise but a loss of correct valve timing, which can damage the engine on a worst-case failure.

Which M276 models are affected

The M276 was fitted across a broad range of Mercedes-Benz models, including the C-Class, E-Class, ML/GLE-Class, CLS-Class and S-Class, in both naturally aspirated and turbocharged forms. The exact timing kit and adjuster part numbers depend on the specific engine variant and model year.

Confirming your exact engine code and chassis is essential before ordering, because the parts are not universal across the M276 family. A VIN check is the quickest way to be certain you are buying the correct kit.

In Australia the M276 is most commonly seen in the naturally aspirated 3.5-litre form and the later turbocharged 3.0-litre form, so it is worth being specific about which variant you have when sourcing parts.

Component	Why it is replaced	Included in full kit
Timing chain	Stretch / wear	Yes
Camshaft adjusters	Rattle / wear	Yes
Guides & tensioners	Wear with chain	Yes

Diagnosing the fault correctly

A correct M276 diagnosis starts with reading the stored fault codes, which usually identify the affected camshaft and whether the issue is position, correlation or the adjuster itself. The cold-start rattle is then confirmed by listening to the engine during the first few seconds after a cold start.

The table below is a simple diagnosis checklist that a specialist will typically work through before recommending a full timing repair.

Check	What it confirms
Read fault codes	Camshaft position / correlation fault
Listen on cold start	Adjuster locking wear
Check oil level / condition	Lubrication contribution
Inspect adjuster	Confirmed worn unit

What a repair costs in Australia

An M276 timing chain and camshaft adjuster job is a substantial repair because of the parts count and the labour involved. The parts themselves are the largest single cost, with the adjusters and full chain kit making up the bulk of the bill.

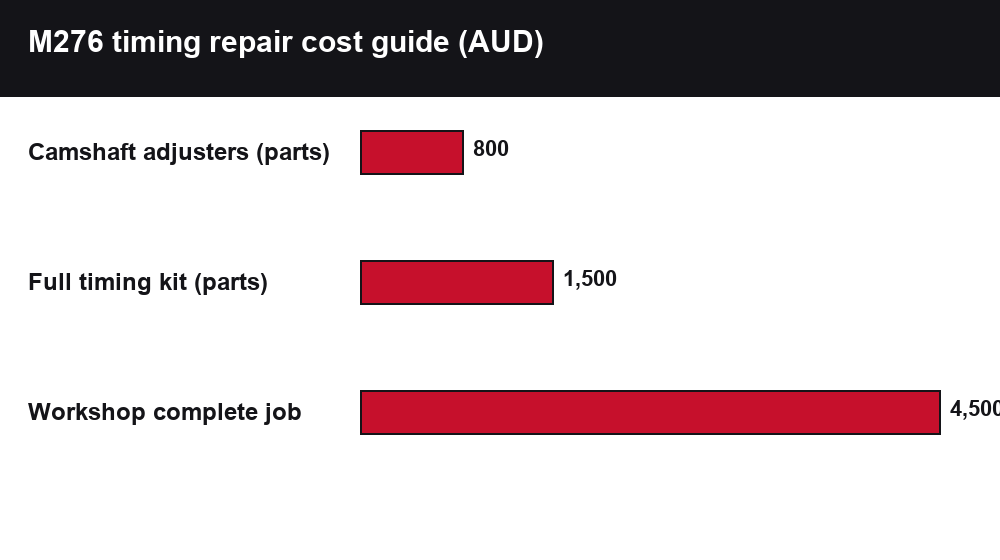

The chart below compares the indicative cost of parts, a full kit and a typical workshop-fitted replacement, using Australian figures.

These figures are a guide only. The exact cost depends on your engine variant, whether all adjusters are replaced, and your workshop’s labour rate.

Because the M276 has four camshaft adjusters and a long timing chain, the parts cost is naturally higher than a four-cylinder timing job. This is a case where buying a complete, correctly matched kit up front is usually cheaper in the long run than replacing components piecemeal.

Why you should repair it as a complete job

Replacing only the noisy adjuster while leaving a stretched chain and worn guides in place is a false economy, because the engine will usually need to be opened again shortly afterwards. A complete kit that includes the chain, guides, tensioners and all four adjusters is the way to get a lasting result.

The labour to access the timing system is the same whether you replace one component or the full set, so the extra parts cost of a complete job is small compared with the cost of paying for the labour twice.

A properly completed M276 timing repair should restore a quiet cold start, clear the fault codes and return the engine to smooth, full-power operation.

How the repair is carried out

The repair is a front-of-engine job that involves removing the timing covers, locking the crankshaft and camshafts in position, and replacing the chain, guides, tensioners and camshaft adjusters as a set. Correct timing alignment and a clean reseal of the covers are essential to a lasting result.

After the components are fitted, the engine is turned over by hand to confirm the marks line up, and the covers are resealed before the ancillaries are refitted. The engine should then be quiet on cold start, with no fault codes and smooth, full-power operation.

Preventing M276 timing wear

The most effective protection for the M276 timing system is using the correct oil specification and following the service schedule. The camshaft adjusters rely on clean, correct-viscosity oil to operate quietly, and long oil-change intervals are a common factor in early adjuster wear.

Paying attention to the first cold-start rattle and having it investigated promptly can also prevent a small adjuster fault from becoming a full timing chain repair. An early diagnosis is far cheaper than ignoring the noise until the fault codes and rough running appear.

For owners who have just purchased a used Mercedes-Benz with the M276, a cold-start listen and a scan for stored camshaft codes are well worth doing before the car is pressed into daily service. Catching a worn adjuster at the rattle stage is dramatically cheaper than repairing a timing failure after it has progressed.

Ultimately, the M276 is a strong engine when the timing system is healthy, and a well-executed timing repair with a complete kit can return it to many more years of reliable service.

If you are weighing a timing repair against the value of the car, remember that the rest of the M276 engine is generally robust. A correct, complete timing repair is usually a sensible investment that avoids the far larger cost of a replacement engine down the track.

Where to buy M276 timing parts in Australia

RunningRoo Auto Parts stocks M276 timing chain kits and camshaft adjusters for a wide range of Mercedes-Benz models, at a fraction of typical dealer pricing with Melbourne pickup and Australia-wide delivery.

• 4x Camshaft Adjusters + Timing Chain Kit for Mercedes-Benz W212 W166 M276
• 2x Timing Camshaft Sprockets (Exhaust L/R) for Mercedes-Benz W212 M276
• Camshaft Adjuster Exhaust Left for Mercedes-Benz W205 W212 M276

Watch a short overview of our OEM timing kits and VVT gears below, then browse the complete range on our eBay store.

Watch: RunningRoo Auto Parts — high-quality OEM timing kits and VVT gears

You can also browse the full range here: RunningRoo Auto Parts on eBay Australia.

Not sure which M276 kit fits your Mercedes? Our Aussie team can confirm the correct adjusters and chain kit against your VIN.

Frequently asked questions

What causes the M276 cold-start rattle?

The most common cause is a worn camshaft adjuster locking mechanism that rattles for a second or two until oil pressure builds and locks the adjuster in position.

Is the M276 cold-start rattle serious?

Yes. It is an early warning of camshaft adjuster wear, and if ignored it can progress to fault codes, rough running and timing chain damage.

How much does an M276 timing chain and adjuster replacement cost?

In Australia the parts and labour for a complete M276 timing job typically run into the several-thousand-dollar range, depending on the engine variant and the number of adjusters replaced.

Can I replace just one camshaft adjuster?

It is possible, but most specialists recommend a complete kit because the adjusters and chain wear together and the labour to access them is the same.

Which Mercedes-Benz models use the M276 engine?

The M276 was used across models including the C-Class, E-Class, ML/GLE-Class, CLS-Class and S-Class in various V6 forms.

How do I confirm the correct M276 timing kit?

Match the kit and adjusters to your exact engine code and chassis using your VIN, because the parts are not universal across the M276 family.

Will the cold-start rattle go away on its own?

No. The rattle may only appear when cold, but the underlying wear will progress. Have the engine inspected and the fault codes read promptly.
