G’day everyone. I’m the Senior Product Manager here at RunningRoo Auto Parts, Australia’s trusted aftermarket automotive parts specialist. The Ford 5.4-litre 3-valve V8 — best known in Australia from the BA/BF Falcon and in North America from the F-150 and Expedition — is a strong engine with one well-known weak point: its timing chain and cam phaser system.

If your 5.4 3V has developed a cold-start rattle or is throwing timing codes, this guide will walk you through what is wrong, what it costs to fix in Australia, the tools involved, and the step-by-step outline of a replacement. All prices are in Australian dollars and are indicative.

If you’d rather talk to a real person about your own engine before reading further, our Melbourne-based team is always available:

Why the Ford 5.4 3V timing system fails

The 5.4-litre 3-valve Modular V8 uses a variable camshaft timing system with hydraulically actuated cam phasers. The timing system relies on a timing chain, chain guides, tensioners and the cam phasers all working together. Over time, the plastic chain guides wear, the tensioners can lose oil pressure and become noisy, and the cam phasers can develop wear that causes a distinct diesel-like rattle on cold start.

The cold-start rattle is the most recognisable symptom. It typically lasts only a second or two until oil pressure builds, which is why many owners dismiss it. Left alone, the wear progresses and can eventually cause timing codes, poor running, and in the worst cases, valve timing that drifts far enough to risk engine damage.

Symptoms of a failing 5.4 3V timing system

Symptom	Likely cause
Rattle on cold start	Worn cam phasers or a lazy timing chain tensioner.
Diesel-like rattle at idle when warm	Advanced cam phaser wear.
Check engine light with timing codes	Camshaft/crankshaft correlation faults, often P0011, P0021 or similar.
Rough idle or reduced power	Camshaft timing drift affecting combustion.
Metallic or plastic debris in the oil	Worn timing chain guides shedding material.

How much does a Ford 5.4 3V timing chain replacement cost?

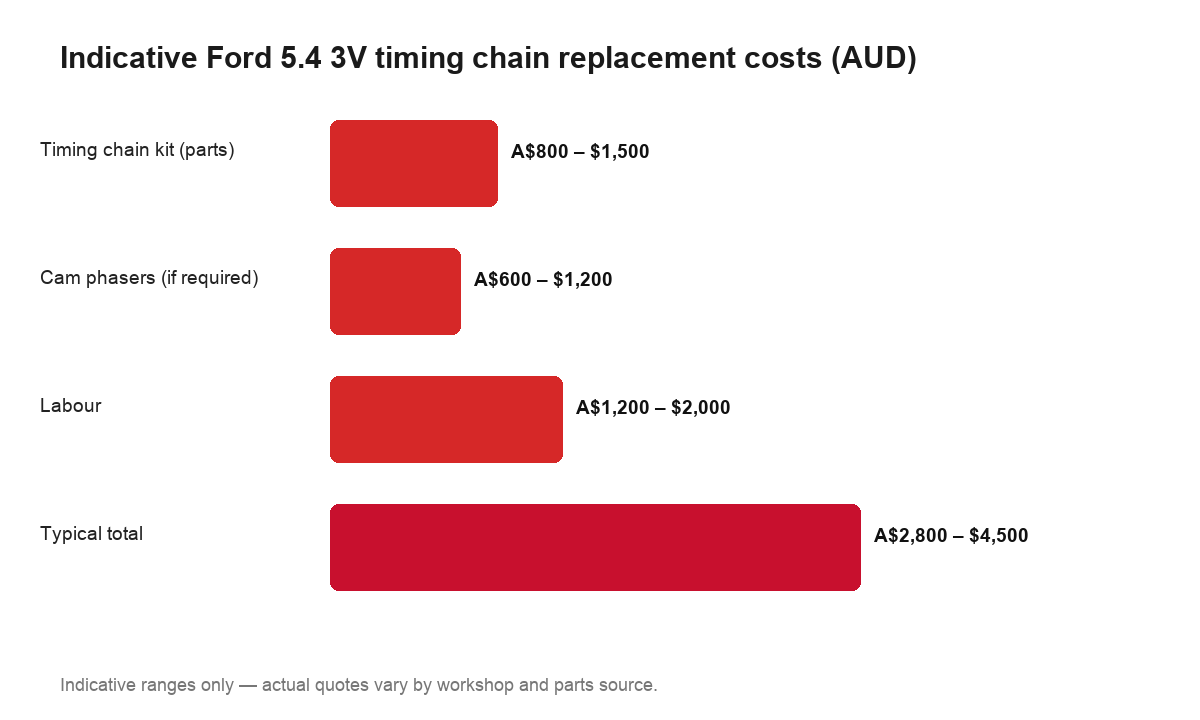

The total cost depends on whether you replace only the chain and guides or also the cam phasers, and on the labour rate of the workshop. The chart and table below summarise typical indicative figures.

Job	Indicative cost (AUD)
Timing chain kit (parts)	$800 – $1,500
Cam phasers (if required)	$600 – $1,200
Labour	$1,200 – $2,000
Typical total	$2,800 – $4,500

Because the labour to reach the timing system is significant, most specialists recommend replacing the chain, guides, tensioners and — where worn — the cam phasers in a single job. Replacing the cam phasers while the engine is already apart is far cheaper than going back in a second time.

Tools needed for the job

A 5.4 3V timing chain replacement is a serious job that requires a well-equipped workshop or a confident home mechanic. The essential items include:

• A timing chain kit matched to the engine.
• Cam phasers and tensioners where required.
• A harmonic balancer puller and the correct crankshaft holding tool.
• A torque wrench capable of the specified torque values.
• Timing marks reference and a camshaft locking tool where specified.
• Engine oil, a new front cover gasket and sealant.

Step-by-step outline of a 5.4 3V timing job

This is a summary of the general procedure, not a substitute for a factory service manual. The exact steps vary by year and vehicle, so always follow the correct procedure for your engine.

1. Disconnect and prepare. Disconnect the battery, drain the engine oil and coolant as required, and remove the accessory drive components, fan and shroud.
2. Remove the front cover. Remove the harmonic balancer and the front timing cover to expose the timing system.
3. Set timing marks. Rotate the engine so the crankshaft and camshaft timing marks align before removing the old chain.
4. Remove the old components. Remove the timing chain, guides, tensioners and, where required, the cam phasers.
5. Fit the new components. Install the new chain, guides, tensioners and phasers, keeping the timing marks aligned.
6. Reassemble. Refit the front cover with a new gasket and sealant, refit the balancer, and torque all fasteners to specification.
7. Refill and verify. Refill the oil and coolant, start the engine, and confirm the rattle is gone and no timing codes return.

Not sure which Ford 5.4 timing chain kit fits your exact engine? Our Aussie team can confirm the right kit against your engine and VIN over the phone:

Where to buy Ford 5.4 timing chain kits

RunningRoo Auto Parts stocks Ford 5.4 timing chain kits, cam phasers and VCT components with Melbourne pickup and Australia-wide delivery.

• Camshaft Timing Chain Kit F150 5.4 (04-08) Triton / Ford Expedition / F250
• Chain Kit for Ford F-150 5.4L (VVT gears, RTV gasket, glue)
• Ford 4.6L / 5.4L 3V VCT Valve Seal & Cam Phaser Actuator Bolts

You can also browse the full range on our eBay store: RunningRoo Auto Parts on eBay Australia.

Frequently asked questions

How much does a Ford 5.4 3V timing chain replacement cost in Australia?

Typically between $2,800 and $4,500 including parts and labour, depending on the vehicle, the kit and whether the cam phasers are also replaced.

What causes the 5.4 3V cold-start rattle?

The rattle is usually caused by worn cam phasers or a lazy timing chain tensioner that is noisy until oil pressure builds after start-up.

Should I replace the cam phasers with the timing chain?

In most cases yes. Because the labour to reach the timing system is significant, replacing worn cam phasers at the same time is usually cheaper than going back in a second time.

Can I replace a 5.4 3V timing chain myself?

It is possible for a confident home mechanic with the correct tools and a service manual, but it is a serious job with precise timing marks and torque specifications. For most owners, a specialist workshop is the safer choice.

What fault codes indicate a 5.4 3V timing problem?

Camshaft/crankshaft correlation faults such as P0011 and P0021, along with related timing codes, commonly indicate a stretched chain or worn phasers.

Which vehicles use the Ford 5.4 3V engine?

In Australia the 5.4-litre 3V is known from the BA/BF Falcon range, and in North America from the F-150 and Expedition. Always confirm the exact engine and VIN before ordering parts.

Choosing the right 5.4 3V timing kit

When you are ready to buy parts, the most important step is matching the kit to your exact engine and application. The 5.4-litre 3V was fitted across different vehicles and model years, and the correct chain, guides, tensioners and phasers can vary. A kit that is “close” is not good enough for a timing job.

Look for a kit that includes everything you will need in one package: the chain, guides, tensioners and the required gaskets and seals. If your cam phasers are worn, decide whether to add phasers or a lockout at the same time, because the labour to reach them is the same. Buying a complete, matched kit removes the risk of discovering mid-job that a critical component is missing.

Quality matters on this job more than on most, because a timing failure on an interference engine can destroy it. Choose a reputable supplier, confirm the application against your VIN, and avoid unknown unbranded parts for a component this critical.

How long does a 5.4 3V timing job take?

A 5.4 3V timing chain replacement is a substantial job that typically takes a professional workshop the better part of a day, and longer for a home mechanic. The exact time depends on the vehicle and whether the cam phasers are also being replaced.

Is a phaser lockout right for my car?

A phaser lockout removes the variable camshaft timing and the associated phaser wear, which suits owners who want to eliminate that failure mode. The trade-off is that the variable valve timing no longer operates, so the decision should be made with advice from a specialist for your vehicle and how it is used.

Cam phaser lockouts and upgrade options

Owners of the 5.4 3V often come across the term “phaser lockout” while researching repairs. A phaser lockout is a modification that locks the variable camshaft timing into a fixed position, eliminating the moving parts inside the cam phasers that are a common source of the cold-start rattle and timing faults. It is a popular option for owners who want to remove the phaser failure mode altogether and accept a fixed cam timing setting.

Lockouts are not right for everyone. They change the engine’s variable valve timing behaviour, and on a road car the change is usually acceptable but should be understood before committing. A quality replacement phaser that restores the factory variable timing remains the standard repair for owners who want to keep the engine operating exactly as designed. A specialist can explain the trade-offs for your specific vehicle and use case.

Preventative maintenance for the 5.4 3V timing system

The best way to avoid a big 5.4 3V timing bill is to catch wear early and keep the oil system healthy. The timing chain tensioners rely on oil pressure, so clean oil at the correct level and regular oil changes are genuinely protective. Using a quality oil filter and the correct oil specification also matters, because the tensioners are sensitive to oil pressure and contamination.

Listening to the engine on a cold start is the simplest early-warning tool you have. A brief rattle that disappears in a second or two is the earliest sign that the phasers or tensioners are wearing, and addressing it then is far cheaper than waiting until the engine develops timing codes or a rough idle.

Common mistakes during a 5.4 3V timing job

Even experienced mechanics can make costly errors on this job, and they are worth understanding if you are planning to do the work yourself or simply want to choose a careful workshop. The most common mistakes include getting the timing marks wrong, failing to replace worn guides and tensioners alongside the chain, reusing a worn phaser, and failing to torque the harmonic balancer correctly.

Another frequent error is not replacing the front cover gasket and sealant properly, which leads to oil leaks after the job. Because the front of the engine is a complicated assembly, following the correct procedure and torque specifications from a service manual is not optional — it is the difference between a repair that lasts and one that leaks or fails again.

Still have questions about your Ford 5.4 3V timing chain after reading this guide? We’re here to help, any time:

Summary

The Ford 5.4 3V is a strong engine with a well-known timing weakness, but the fix is now well understood. A cold-start rattle is the earliest warning, and the most cost-effective repair is a complete timing chain kit fitted together with new cam phasers where required, because the labour to reach them is shared.

Tool / item	Purpose
Timing chain kit	Replacement chain, guides, tensioners and gaskets.
Cam phasers or lockout	Replace worn phasers or remove the failure mode.
Harmonic balancer puller	Removes the crank pulley safely.
Crankshaft holding tool	Holds the crank while the balancer bolt is torqued.
Torque wrench	Applies the correct torque to critical fasteners.
Camshaft locking tool	Holds the cams in time during the job.
Gasket and sealant	Seals the front timing cover.

Whether you do the job yourself or use a workshop, correct timing marks, torque specifications and quality parts are non-negotiable. Getting the timing wrong on an interference engine can destroy it, so when in doubt, use a specialist.

References

Key data in this article is drawn from the following official manufacturer sources:

• Ford Motor Company — 5.4L 3V Modular V8 timing-chain and cam-phaser service information (technical service bulletins).
